Hãng sản xuất : Engenius
Xuất xứ : Chính hãng , sản xuất tại : Đài Loan
Model : EAP350
Loại sản phẩm : Indoor Access Point Wifi
Wi-Fi Data Rate: 300Mbps (2T2R)
Ethernet: 10/100/1000-based LAN/WAN share port *1
Internal 5dBi Antenna
Multi Modes Support (AP/ WDS)
Thông số kĩ thuật
Giới thiệu chung
: Engenius EAP350 Wireless N300 Indoor Access Point
Hãng sản xuất
: Engenius
Xuất xứ
: Chính hãng , sản xuất tại Đài Loan
Mã sản phẩm
: EAP350
Màu sắc
: Trắng
Loại sản phẩm
: Indoor Access Point Wifi
Tính năng
: Là thiết bị chuyên phát sóng Wifi trong nhà
Đặc điểm nổi bật
: là thiết bị Access Point Wifi ốp trần cho phép người dùng mở rộng vùng phủ sóng, thâm nhập mạnh mẽ, quản lý mạng lưới an toàn và kết nối đơn giản.
Cổng kết nối
: LAN: 1 x 10/100/1000 Fast Ethernet RJ-45 (802.3af PoE standard supported)
Memory
: 32MB , Flash 4MB
Flash
: 32MB
Wireless Setting
: Operation Mode – AP / WDS
: Wireless Mode – 11b/ 11g /11n
: Channel Selection (Setting varies by Country)
: Channel Bandwidth (Auto, 20Mhz, 40Mhz)
: Transmission Rate - 11n only ,11b/g/n mix ,11b only ,11b/g
: Wireless Mode – 11b/ 11g /11n
: Channel Selection (Setting varies by Country)
: Channel Bandwidth (Auto, 20Mhz, 40Mhz)
: Transmission Rate - 11n only ,11b/g/n mix ,11b only ,11b/g
Port Functions
: 24x 10/100/1000Mbps Ports
: 4x 100/1000Mbps SFP Slots 1
: x RJ45 Console Port
: 4x 100/1000Mbps SFP Slots 1
: x RJ45 Console Port
Frequency Band
: 2.400～2.484 GHz(11b, 11g, 11n)
Antenna
: Antenna Internal 5dBi MIMO Ant.
Power Source
: AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
: Adapter : 12V/1A
: Adapter : 12V/1A
Dimensions & Weights
: Weight: 3.55 kg
: Width: 44 cm
: Deep: 31 cm
: Height: 4.4 cm
: Width: 44 cm
: Deep: 31 cm
: Height: 4.4 cm
Power
: Adapter 12V / 1A
Application
Technical More
Hardware
RF: 2.4 GHz Frequency Band
Standard: IEEE 802.11b/g/n
IEEE 802.11b/g: 2.400~2.484 GHz
Data Rate: Up to 300 Mbps
Memory: 32MB
Flash Memory: 4MB
Antenna
Internal 5 dBi Omni-Directional Antenna (diversity support)
Physical Interface
1 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
1 x Reset Button
Power Jack
LEDs Status
Power
LAN (10/100/1000 Mbps)
WLAN (Wireless Connection)
RF: 2.4 GHz Frequency Band
Standard: IEEE 802.11b/g/n
IEEE 802.11b/g: 2.400~2.484 GHz
Data Rate: Up to 300 Mbps
Memory: 32MB
Flash Memory: 4MB
Antenna
Internal 5 dBi Omni-Directional Antenna (diversity support)
Physical Interface
1 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
1 x Reset Button
Power Jack
LEDs Status
Power
LAN (10/100/1000 Mbps)
WLAN (Wireless Connection)
Power Requirements
Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz
(depends on different countries)
Active Ethernet (Power-over-Ethernet, IEEE 802.3af)
Power Adapter (United States) 48VDC/0.375A
Device: 12V/1A
Modulations
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
Operating Channels
2.4 GHz: US/Canada 1-11
Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz
(depends on different countries)
Active Ethernet (Power-over-Ethernet, IEEE 802.3af)
Power Adapter (United States) 48VDC/0.375A
Device: 12V/1A
Modulations
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
Operating Channels
2.4 GHz: US/Canada 1-11
Receiver Sensitivity
802.11b (2.412~2.472 GHz) best ≤ -98 dBm
802.11g (2.412~2.472 GHz) best ≤ -93 dBm
802.11n (2.412~2.472 GHz) best ≤ -93 dBm
Available Transmit Power
(Max. Power may be different depending on local regulations)
802.11b (2.412~2.472 GHz)
29 dBm @ 1~11 Mbps
802.11g (2.412~2.472 GHz)
29 dBm @ 6 Mbps
29 dBm @ 9 Mbps
28 dBm @ 12 Mbps
28 dBm @ 18 Mbps
24 dBm @ 24 Mbps
24 dBm @ 36 Mbps
23 dBm @ 48 Mbps
23 dBm @ 54 Mbps
802.11n (2.412~2.472 GHz)
26 dBm @ MCS0/MCS8
26 dBm @ MCS1/MCS9
25 dBm @ MCS2/MCS10
25 dBm @ MCS3/MCS11
24 dBm @ MCS4/MCS12
24 dBm @ MCS5/MCS13
23 dBm @ MCS6/MCS14
23 dBm @ MCS7/MCS15
802.11b (2.412~2.472 GHz) best ≤ -98 dBm
802.11g (2.412~2.472 GHz) best ≤ -93 dBm
802.11n (2.412~2.472 GHz) best ≤ -93 dBm
Available Transmit Power
(Max. Power may be different depending on local regulations)
802.11b (2.412~2.472 GHz)
29 dBm @ 1~11 Mbps
802.11g (2.412~2.472 GHz)
29 dBm @ 6 Mbps
29 dBm @ 9 Mbps
28 dBm @ 12 Mbps
28 dBm @ 18 Mbps
24 dBm @ 24 Mbps
24 dBm @ 36 Mbps
23 dBm @ 48 Mbps
23 dBm @ 54 Mbps
802.11n (2.412~2.472 GHz)
26 dBm @ MCS0/MCS8
26 dBm @ MCS1/MCS9
25 dBm @ MCS2/MCS10
25 dBm @ MCS3/MCS11
24 dBm @ MCS4/MCS12
24 dBm @ MCS5/MCS13
23 dBm @ MCS6/MCS14
23 dBm @ MCS7/MCS15
Software
Topology
Infrastructure/Ad-Hoc
Operation Modes
Access Point, WDS Bridge, WDS Access Point, Universal Repeater
Infrastructure/Ad-Hoc
Operation Modes
Access Point, WDS Bridge, WDS Access Point, Universal Repeater
Mutliple BSSID
Supports up to 8 SSIDs
Supports up to 8 SSIDs
LAN
IP (check validity and DHCP server IP range)
DHCP Server
DHCP range, lease time, client list
SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
Spanning Tree
Supports 802.1d Spanning Tree Protocol
IP (check validity and DHCP server IP range)
DHCP Server
DHCP range, lease time, client list
SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
Spanning Tree
Supports 802.1d Spanning Tree Protocol
Wireless
Wireless Mode: 11b/11g/11n
Channel selection (settings vary by country)
Channel bandwidth (Auto, 20 MHz, 40 MHz)
Transmission rate:
2.4 GHz: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only
Wireless Mode: 11b/11g/11n
Channel selection (settings vary by country)
Channel bandwidth (Auto, 20 MHz, 40 MHz)
Transmission rate:
2.4 GHz: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only
QoS
WMM (Wireless Multimedia)
VPN
Pass-through (PPTP, L2TP, IPSec)
WPS
Software only
WMM (Wireless Multimedia)
VPN
Pass-through (PPTP, L2TP, IPSec)
WPS
Software only
THE ENGENIUS DIFFERENCE

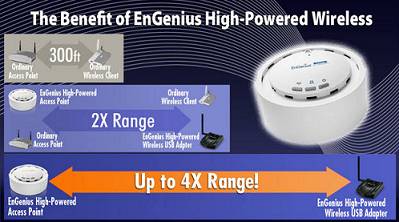

The 2.4GHz Wireless-N EAP350 Access Point Features up to 2x the range of ordinary Access Points covering more area so more users can connect. This makes it an ideal option for office, education or hospitality deployments.
ENGENIUS ENTERPRISE - INDOOR
| |||
Quản lý tập trung tất cả AP bằng phần mềm miễn phí
Công suất & Repeater tất cả Wifi | |||
Công suất mạnh & Độ nhạy cao. Siêu Repeater
| |||
ECB300 NEW
|
Realtek RT8196c+8192, 2.4GHz 802.11b/g/n Desktop AP(AP/CB/WDS/CR), 2Tx+2Rx: 300Mbps, 100Mbps switch, High Power 29dBm, 2 x 5dBi Antenna, 802.3af support
|
Stock
|
2,450,000
|
ECB350 NEW
|
Atheros AR7240+9283, 2.4GHz 802.11b/g/n Desktop AP (AP/CB/WDS/CR), 2Tx+2Rx: 300Mbps, 10/100/1000 GBE Switch, High Power 29dBm, Integrate 5dBi Antenna, 802.3af support
|
Stock
|
3,000,000
|
ECB600 NEW
|
2.4GHz+5GHz 11b/g/n Dual Band Concurrent AP/CB, 2Tx+2Rx: 300+300Mbps, 1Gbps switch, High Power 29dBm(2.4GHz) 26dBm(5GHz), 4 x 5dBi Dipole Antenna, 802.3at support
|
Stock
|
5,780,000
|
EAP300
|
Realtek RT8196c+8192, 2.4GHz 802.11b/g/n ceiling mount AP (AP/WDS), 2Tx+2Rx: 300Mbps, 100Mbps switch, High Power 29dBm, Integrated 5dBi Antenna, 802.3af support
|
Stock
|
3,000,000
|
EAP350 NEW
|
2.4GHz 802.11b/g/n ceiling mount AP (AP/WDS), 2Tx+2Rx: 300Mbps, 10/100/1000 GBE Switch, High Power 29dBm, Integrate 5dBi Antenna, 802.3af support
|
Stock
|
3,990,000
|
EAP600
|
Atheros AR9344+AR9382, 2.4GHz+5GHz 11a/b/g/n Dual Band Concurrent Ceiling Mount AP (AP/WDS/Repeater), 2Tx+2Rx: 300+300Mbps, 1Gbps switch, High Power 29dBm(2.4GHz) 26dBm(5GHz), Integrate 5dBi Antenna, 802.3at/af support
|
Stock
|
5,480,000
|
EWS210AP
|
11b/g/n Indoor Managed AP, 300Mbps, 1 x 1 Gbps LAN Port, High Power 29dBm @ 2.4GHz, 2 x Integrate Antennas, 802.3af/at support
|
Stock
|
4,105,000
|
EWS310AP
|
11a/b/g/n Dual Band Concurrent Indoor Managed AP, 2Tx+2Rx: 300+300Mbps, 1 x 1 Gbps LAN Port, High Power 29dBm @ 2.4GHz, 26dBm @ 5GHz, 4 x Integrate Antennas, 802.3af/at support
|
Stock
|
6,470,000
|
EWS320AP
|
11a/b/g/n Dual Band Concurrent Indoor Managed AP, 3Tx+3Rx: 450+450Mbps, 1 x 1 Gbps LAN Port, High Power 28dBm @ 2.4GHz, 27dBm @ 5GHz, 6 x Integrate Antennas, 802.3at support
|
Order
|
7,570,000
|
EWS360AP NEW!!
|
11ac/b/g/n Dual Band Concurrent Indoor Managed AP, 3Tx+3Rx: 450+1300Mbps, 1 x 1 Gbps LAN Port,
High Power 28dBm @ 2.4GHz, 27dBm @ 5GHz, 6 x Integrate Antennas, 802.3at support |
Order
|
8,120,000
|
EWS660AP NEW!!
|
2.4GHz+5GHz 11ac/b/g/n Dual Band Concurrent AP (AP/WDS/MESH), 3Tx+3Rx: 450+1300Mbps, 2 x 1 Gbps LAN Port, High Power 29dBm @ 2.4GHz, 29dBm @ 5GHz, 6 x N-type with Surge Arrestor connector, 802.3at support, IP55 housing support
|
Order
|
10,600,000
|
EWS860AP NEW!!
|
2.4GHz+5GHz 11ac/b/g/n Dual Band Concurrent AP (AP/WDS/MESH), 3Tx+3Rx: 450+1300Mbps, 2 x 1 Gbps LAN Port, High Power 29dBm @ 2.4GHz, 29dBm @ 5GHz, 6 x N-type with Surge Arrestor connector, 802.3at support, IP68 housing support, 802.3af PSE out support
|
Order
|
21,900,000
|
ENGENIUS ENTERPRISE - OUTDOOR
| |||
Quản lý tập trung tất cả AP bằng phần mềm miễn phí
Công suất & Repeater tất cả Wifi | |||
Công suất mạnh & Độ nhạy cao. Siêu Repeater Công suất & Độ nhạy cao. Tiêu chuẩn Công nghiệp IP 67
| |||
ENH202 NEW
|
2.4GHz 802.11b/g/n outdoor CPE (CB/AP/CR/WDS), 2Tx+2Rx: 300Mbps, 2* 10/100 Ethernet, High Power 29dBm, Integrate 10dBi Antenna with polarization
|
Stock
|
3,074,000
|
ENH500 NEW
|
5GHz 802.11b/g/n, 2Tx+2Rx: 300Mbps, 100 Mbps LAN, High Power up to 28dBm, Integrate 13dBi Antenna with polarization
|
Stock
|
3,160,000
|
ENH220 EXT NEW
|
2.4GHz 11b/g/n AP (AP/CB/WDS), 2Tx+2Rx: 300Mbps, 1 x 1Gbps LAN Port, High Power 27dBm @ 2.4GHz, 2xN-type connector, 2x5dBi dipole antenna, 802.3at/af support, IP68
|
Order
|
8,230,000
|
ENH900 EXT
|
2.4GHz+5GHz 11a/b/g/n Dual Band Concurrent AP (AP/CB/WDS), 3Tx+3Rx: 450+450Mbps, 2 x 1 Gbps LAN Port, High Power 28dBm @ 2.4GHz, 27dBm @ 5GHz, 6 x N-type with Surge Arrestor connector, 802.3at support, IP68 housing support
|
Order
|
18,590,000
|
ENS202 EXT
|
Wireless IEEE 802.11b/g/n, Data Rate: Up to 300 Mbps Two external 5 dBi Omni-directional Antennas
2 x RJ-45 Fast Ethernet (10/100 Mbps), 1 x Reset Button Active Ethernet (Power-over-Ethernet) Power Adapter (United States) 24V/0.6A Auto Channel Selection Distance Control (802.1x Ack timeout) CLI (Command Line Interface) Supported 802.1X RADIUS Supplicant (Client Bridge Mode) Multiple SSID (4 SSIDs), BSSID WDS AP, WDS Bridge, WDS Station Multicast Supported VLAN Tagging, VLA Pass-through Auto Reboot, Wi-Fi Scheduling |
Stock
|
2,250,000
|
ENGENIUS CONTROLLER - EWS
| |||
EWS5912FP
|
Wireless Management Switch with 8 GE PoE + 2 GE + 2 GE SFP, IEEE802.3at/af, 130w PoE power budget, internal power supply, 13inch 1U rack-mountable (Managed max 20 Aps)
|
Order
|
13,470,000
|
EWS7928P
|
Wireless Management Switch with 24 GE PoE + 4 GE SFP IEEE802.3at/af, 185w PoE power budget, internal power supply, 19inch 1U rack-mountable (Manage max 50 Aps)
|
Order
|
22,840,000
|
EWS7928FP NEW!!
|
Wireless Management Switch with 24 GE PoE + 4 GE SFP IEEE802.3at/af, 370w PoE power budget, internal power supply, 19inch 1U rack-mountable (Manage max 50 Aps)
|
Order
|
28,600,000
|
